Common Car Configs

Car Engine Damage System Settings

_images/CarEngineDamageSystemSettings.png
Damage states:

  • Min/max hp : min/max vehicle health (as % of maximum health) at which engine damage starts to appear.

  • Prefab : VFX prefab.

Car Ignition Config

Config used by parking states.

_images/CarIgnitionConfig.png

Hub/Configs/CarConfigs/IgnitionConfig

Has ignition : on/off ignition state of the car when the NPCs enters the car.
Idle before start : idle before starting ignition.
Ignition duration : ignition duration.
Engine started time duration : time to end of ignition state after which the engine start sound is emitted (if value = 0, engine start sound is not emitted).
Max pitch : max pitch of the ignition sound.
Max volume : max volume of ignition sound.
Curve blob steps count : count of steps in the blob curve.
Pitch animation curve : pitch ignition curve. Y - pitch value. X - normalized duration time.
Volume animation curve : volume ignition curve. Y - volume value. X - normalized duration time.

Car Stopping Engine Config

_images/CarStoppingEngineConfig.png

Hub/Configs/CarConfigs/StoppingEngineConfig

Has stop engine :
Stopping duration :
Idle after stopping :
Target min pitch :
Target min volume :

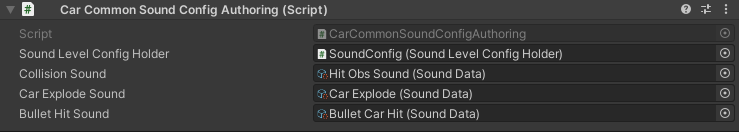

Car Common Sound Config

_images/CarCommonSoundConfig.png

Hub/Configs/CarConfigs/CommonSoundConfig

Collision sound : sound data for car collisions.
Car explode sound : sound data for car explosions.
Bullet hit sound : sound data for bullet impacts.
Npc hit sound : sound data when a vehicle hits an NPC.
Sound culling type:

  • By Layer : the sound will be enabled for the vehicle when it’s within the player’s camera’s field of view.

  • By Distance : the sound will be enabled when the vehicle is within the player’s camera’s field of view and the specified radius.

Enable distance : radius distance within which the sound is enabled (active only if By Distance culling type is selected).
