Path Debug

Path Debugger
- How To Open
- Settings
Path Data Viewer
Path Index Debugger

Path Debugger 

Youtube tutorial.

How To Open 

In the scene, select:

CityDebugger/PathDebugger

Settings 

Draw editor traffic path : on/off path visualisation in the scene in Editor.

Draw entity traffic pathon/off entity path visualisation in the scene at runtime.

Draw entity traffic node connection : on/off draw TrafficNode entity connection debug at runtime.

Draw pedestrian connection path : on/off PedestrianNode connection visualisation in the scene in the Editor.

Path Data Viewer 

Tool for quick visualisation of path parameters.

How To Open 

In the Unity toolbar:

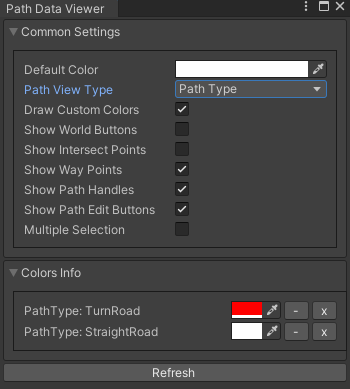

Spirit604/CityEditor/Window/Path Data Viewer

How To Use 

Select Path view type.
In the Colors info tab, press - to hide the paths with the selected option.
Press + to display the hidden path with the selected option again.
Press x to reset saved color of the parameter.

Settings 

Default color : default path color.

Path view type: selected parameter for visualisation (examples)

Speed limit : speed limit of the :ref:`paths <path>.
Priority : priority of the :ref:`paths <path>.
Path type : path type of the :ref:`paths <path>.
Traffic path group : traffic group of the :ref:`paths <path>.
Traffic path node group : traffic group of the waypoints
Node direction : node direction (forward or backward) of the waypoints in the paths.
Arrow light : shows the paths with the assigned custom light.
Rail : shows the paths with the rail parameter.

Draw custom colors : on/off custom colors of the paths in the scene.
Show world buttons : show world path selection buttons.
Show intersect point : on/off visual intersection points in the scene.
Show waypoints : on/off waypoints of the path in the scene.
Show path handles : on/off path position handles of the selected path.
Show path edit buttons : on/off path edit buttons of the selected path.
Multiple selection : on/off feature to select multiple paths at the same time (useful for setting the same value for multiple paths).
Show unselect buttons : show unselect button for already selected paths in multiple selection mode.
Refresh : update path data in the viewer.

Examples 

Path type example.

Priority path example.

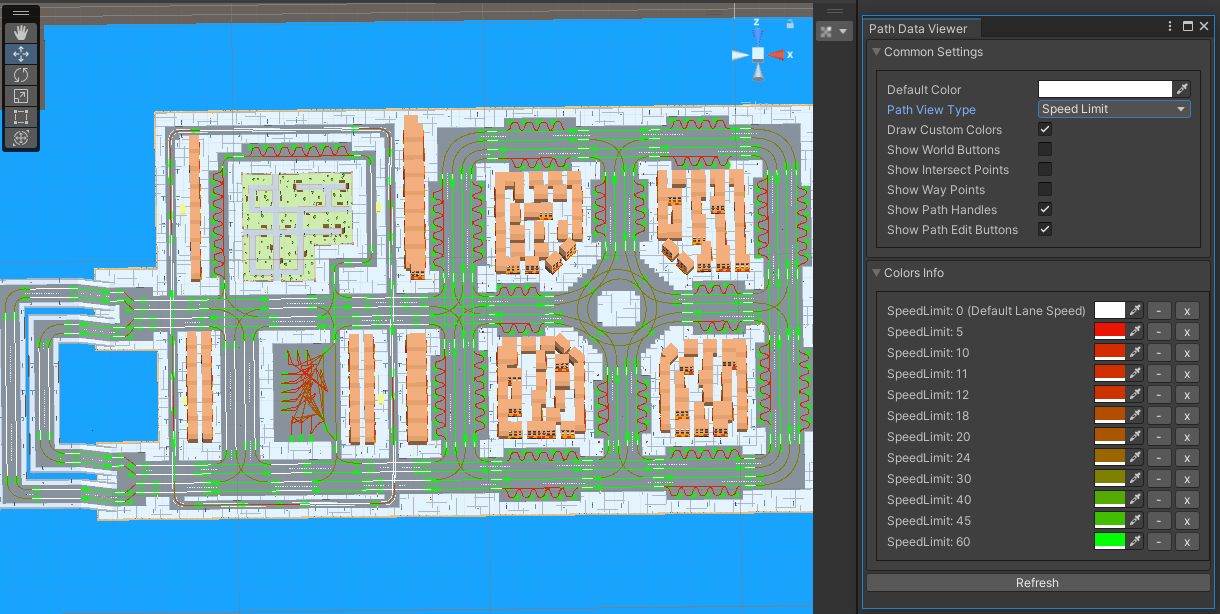

Speed limit path example.

Path Index Debugger 

How To Open 

In the scene, select:

CityDebugger/PathDebugger

Settings 

Should debug : on/off debugger.
Select path : on/off path selection settings.
Selected path index : display the data for the selected path (-1 path is not selected).

Path debug mode :

Default : only the current path index is shown.
Parallel : parallel path indexes.
Neighbor paths : neighbor path indexes (paths that start from the same point).
Next connected paths : indexes to which the current path is connected.
Intersected paths : intersection paths indexes.
Car count : number of cars with the current path index.

Index example:

543 (544, 545, 546) - current path index is 543. Other relevant path indexes, depending on the chosen Path debug mode.

Examples 

Default “Path debug mode” example.

Parallel paths “Path debug mode” example.
