Demo Configs

Configs

Configs 

General Settings Config 

Config to quickly on/off optional features.

Where To Find 

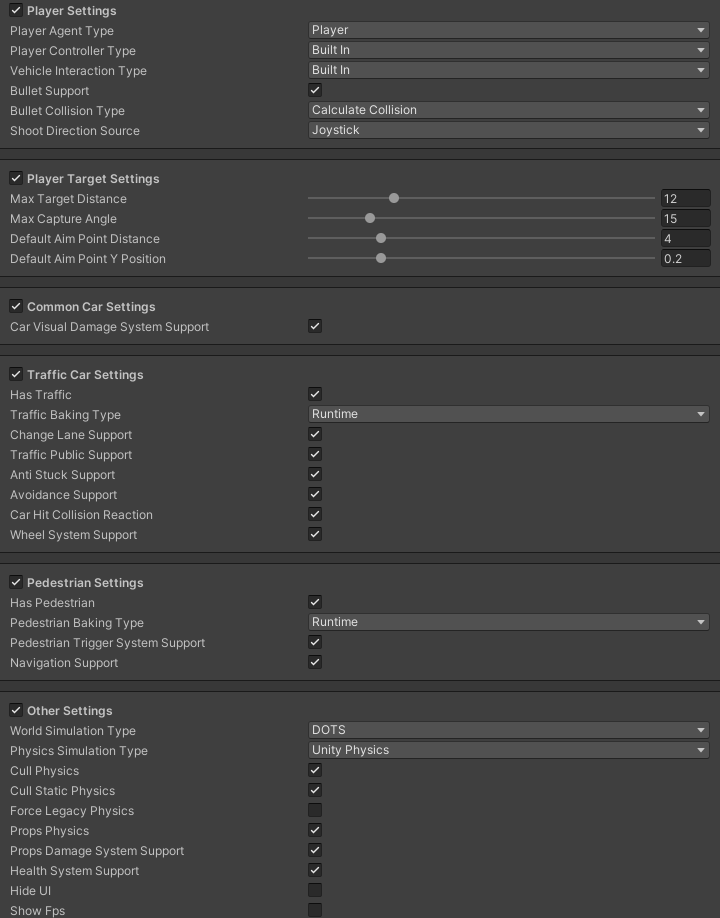

Config Example 

Player Settings 

Player agent type:

Player : player will be spawned.
Free fly camera : flying camera will be spawned.

Player controller type:

Built In : the player spawned by the built-in solution & has an example built-in controller.
Built In Custom : the player spawned by the built-in solution, but the player NPC has a custom character controller & taken from PlayerCustomHybridMonoNpcFactory.
Custom : the player is spawned & handled entirely by the user’s custom solution.

Vehicle interaction type:

Built In : the player interacting with cars by the built-in solution.
Custom : the player interacting with the cars by the custom user solution.

Bullet collision type: method of calculating collisions for a bullet.

Calculate collision : manual calculating.
Raycast : by raycast.

Shoot direction source:

Joystick : target of the firing in the direction of the joystick.
Crosshair : target of the shooting in the direction of the crosshair position.

Player Target Settings 

Max target distance : maximum distance for crosshair target capture (crosshair mode only).
Max capture angle :       maximum angle for crosshair target capture (crosshair mode only).
Default aim point distance : distance between the player and the crosshair if there is no target.
Default aim point Y position : default Y-axis crosshair position.

Common Car Settings 

Car visual damage system support : on/off visual hit feature for traffic vehicles by bullets.

Traffic Car Settings 

Has traffic : on/off traffic vehicle in the city.

Traffic baking type:

Editor subscene : all traffic entities are converted at editor subscene time.
Runtime : all traffic entities are converted at runtime.

Change lane support : on/off feature to change lanes for traffic.
Traffic public support : on/off public traffic vehicle in the city.
Antistuck support : on/off antistuck feature for traffic vehicles.
Avoidance support : on/off avoidance of the vehicles.
Car hit collision reaction : on/off traffic collision reaction to other traffic cars.
Wheel system support : on/off simple wheel system for traffic vehicles.

Pedestrian Settings 

Has pedestrian : on/off pedestrians in the city.

Pedestrian baking type:

Editor subscene : all pedestrian entities are converted at editor subscene time.
Runtime : all pedestrian entities are converted at runtime.

Pedestrian trigger system support : on/off trigger feature for pedestrians (fear running due bullets etc…).

Other Settings 

World simulation type:

DOTS : simulation of traffic & pedestrians entirely in DOTS space.
Hybrid mono : physics simulation run on Monobehaviour scripts, but input taken from DOTS entities simulation.

Physics simulation type:

No physics : dots physics off.
Unity physics : Unity dots physics on.
Havok physics : Havok dots physics on (havok physical package is required).

Cull physics : on/off culling of the physics of dynamic objects that are far from the player.
Cull static physics :on/off culling of the physics of static objects that are far from the player.
Force legacy physics : force enable built-in physics , otherwise built-in physics will be disabled when ragdoll is disabled.
Health system support : on/off health systems for all entities (vehicles, pedestrians, etc…).
Navigation support : on/off navigation systems for pedestrians.
Props damage system support : on/off damage systems for props.
Target FPS : target fps of the device.
Hide UI : on/off UI.
Show FPS : on/off fps ui panel.

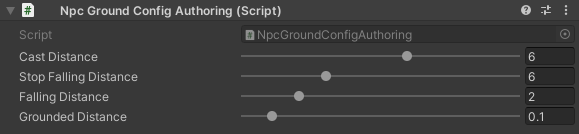

Npc Ground Config 

Cast distance : raycast distance.
Stop falling distance : distance from the surface where the landing animation starts.
Falling distance : min distance from the surface where the falling state starts.
Grounded distance : distance from the surface for ground state.

Note

Currently only used for player NPCs.
