Structure

Project Scenes

Demo Lite : the main optimized demo scene of the project (read more about scene structure here).
Demo Mono Lite : the new demo scene of the project, which contains an example of traffic & NPCs fully interacting with monobehaviour scripts (v1.1.0+).
Traffic test scene : traffic test scene where all parameters can be tested with a set of most traffic situations.
Props test scene : props test scene where the workability of entities can be tested.
Traffic stress scene : stressed scene is extremely crowded with vehicles.
Traffic stress scene mobile : mobile version of Traffic stress scene.
Vehicle physics stress scene : stress scene for the thousands cars with Custom vehicle controller.
Vehicle custom physics test scene : scene for testing various parameters of the Custom vehicle controller.

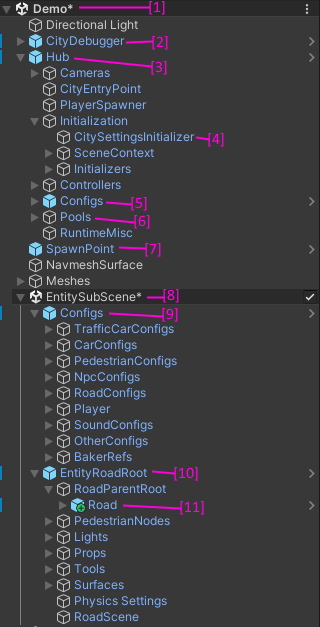

Main scene.
City debugger : contains all the debuggers for the city.
Hub : contains the Entity Subscene Generator (read more on how to create it).
City Settings Initializer : contains the General Settings of the DOTS city [moved to the Config tab].
Main scene configs (read more about the config editing workflow).
Pools : contains all the entity presets.
Spawnpoint : spawnpoint of the player (assigned in the PlayerSpawner if built-in solution in use).
Subscene (EntitySubScene) : subscene into which all of the entities are converted (generated by the Entity Subscene Generator).
Subscene configs (read more about the config editing workflow).
EntityRoadRoot : object root generated by the Entity Subscene Generator.

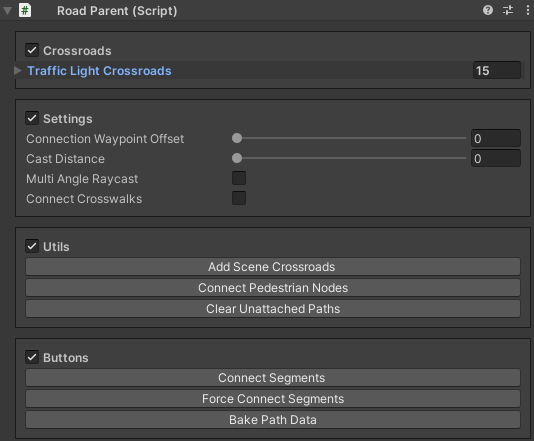

Road : road parent (read more about the road editing workflow).

The root of all crossroads in the scene.

Read more in the Road Network Workflow section.

Connection waypoint offset: Automatically adds a waypoint at each selected offset to the automatically created paths (if the value is greater than zero).
Cast distance: Raycast connection distance between Traffic nodes. If set to zero, the value is infinite.
Multi angle raycast: Multi-angle raycasting along the Z-axis.

Add crossroads: Adds a scene crossroad if it is missing.
Clear unattached paths: Deletes the paths that are not connected to any TrafficNode.

Connect segments: Creates the automatically generated paths for missing paths of external nodes.
Force connect segments: Creates the automatically generated paths for all paths of external nodes. If a path was previously created & autopath lock is off for the Traffic node, the path will be overridden.
Bake path data: Bakes the road data (read more about baking).

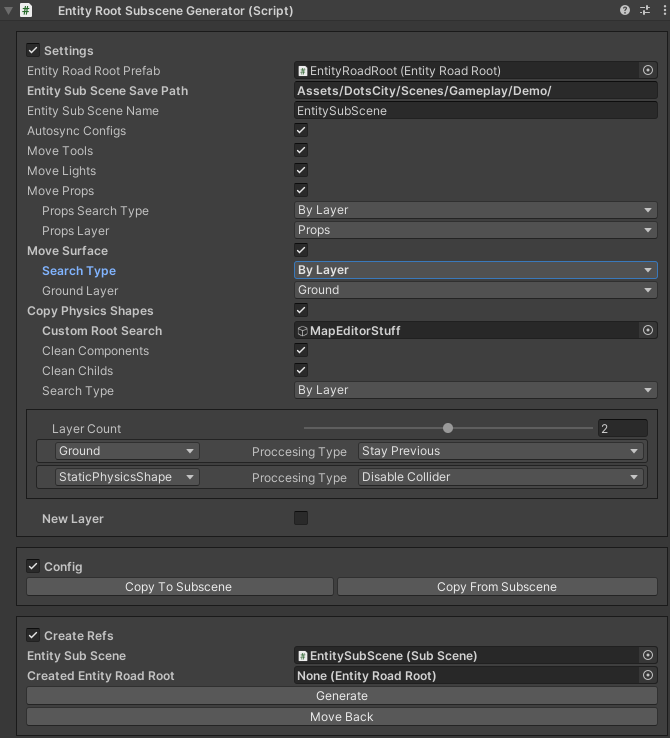

Read more in the Road Entity Subscene section.

Copy to subscene: The subscene configs will be synchronized with the main scene.
Copy from subscene: The main scene configs will be synchronized with the subscene.

Generate: Generates the subscene.
Move back: Move the road from the subscene to the main scene (can be useful for editing roads in the main scene due to Editor performance).

Automatically used by the Entity Subscene Generator.

This tool only works for DOTS if the DOTS simulation type is selected in the General Settings.

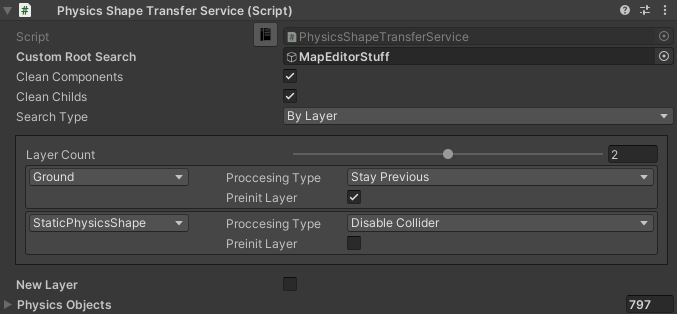

Tool for cloning physical shapes from the main scene to the subscene.
There is also a tool to maintain both the default physical world and the DOTS physical world at the same time, so that default colliders and DOTS colliders exist at the same time if you need to use default colliders in MonoBehaviour classes.

Current project use cases:

Cloning of physical shapes from the main scene to split them into subscene pieces by using SubSceneChunk Creator or cloned into the main subscene by using Entity Subscene Generator.

Note

The tool can only use one tool at a time, either an Entity Subscene Generator or a SubSceneChunk Creator.

Clean components

Removes all components from the physics shape.

Clean childs

Removes all childs from the physics shape.

Search type

Searching shapes by layer or tag.

Proccesing type

Stay previous : cloning found PhysicsShape or Collider to subscene, useful to keep default collider and Unity.Physics collider running at the same time.
Disable collider : cloning found PhysicsShape or Collider to subscene and disable it in the main scene.

Preinit layer

Enable pre-init cull state for physics objects.

New layer

Assigns new layer for cloned shape.
